EasyClick PC™ Snap, Click, Done
DIY friendly multiwall polycarbonate sheeting for patios, pergolas, carports, pool enclosures and bright outdoor living spaces. Clean concealed fixing, simple installation and no glazing bars.
DIY friendly multiwall polycarbonate sheeting
Innovation for easy DIY installation. EasyClick PC™ is an ideal option for glazing and roofing in patios, greenhouses, carports, pool enclosures, office partitions and more.
Replace a tired pergola roof with a cleaner, brighter finish that can be retrofitted to structures designed for profiled sheeting, with no additional support required in many common applications.
Likened to floating flooring, EasyClick PC™ has concealed fixing. Cut panels to length, screw in place, snap in the next panel and repeat, finishing with aluminium U-channel.
The cross wall construction is thermally efficient, offers high light transmission and helps protect patio furniture, vehicles and outdoor spaces from the harmful effects of the sun.
Why EasyClick PC™ is the smart DIY patio solution
A practical roofing system for renovators who want the clean appearance of a modern patio roof with a straightforward installation path.
Click-together convenience
Interlocking panels give the roof a clean, contemporary look without exposed glazing bars.
Stress-free installation
Lightweight sheets are designed for standard structures and everyday DIY tools.
Built for Australian conditions
UV protection, impact resistance and insulation support year-round outdoor comfort.
Four modern colours
Choose Clear, Opal, Grey or Metallic Grey to balance natural light and shade.
Clean light for patios, pergolas and living spaces

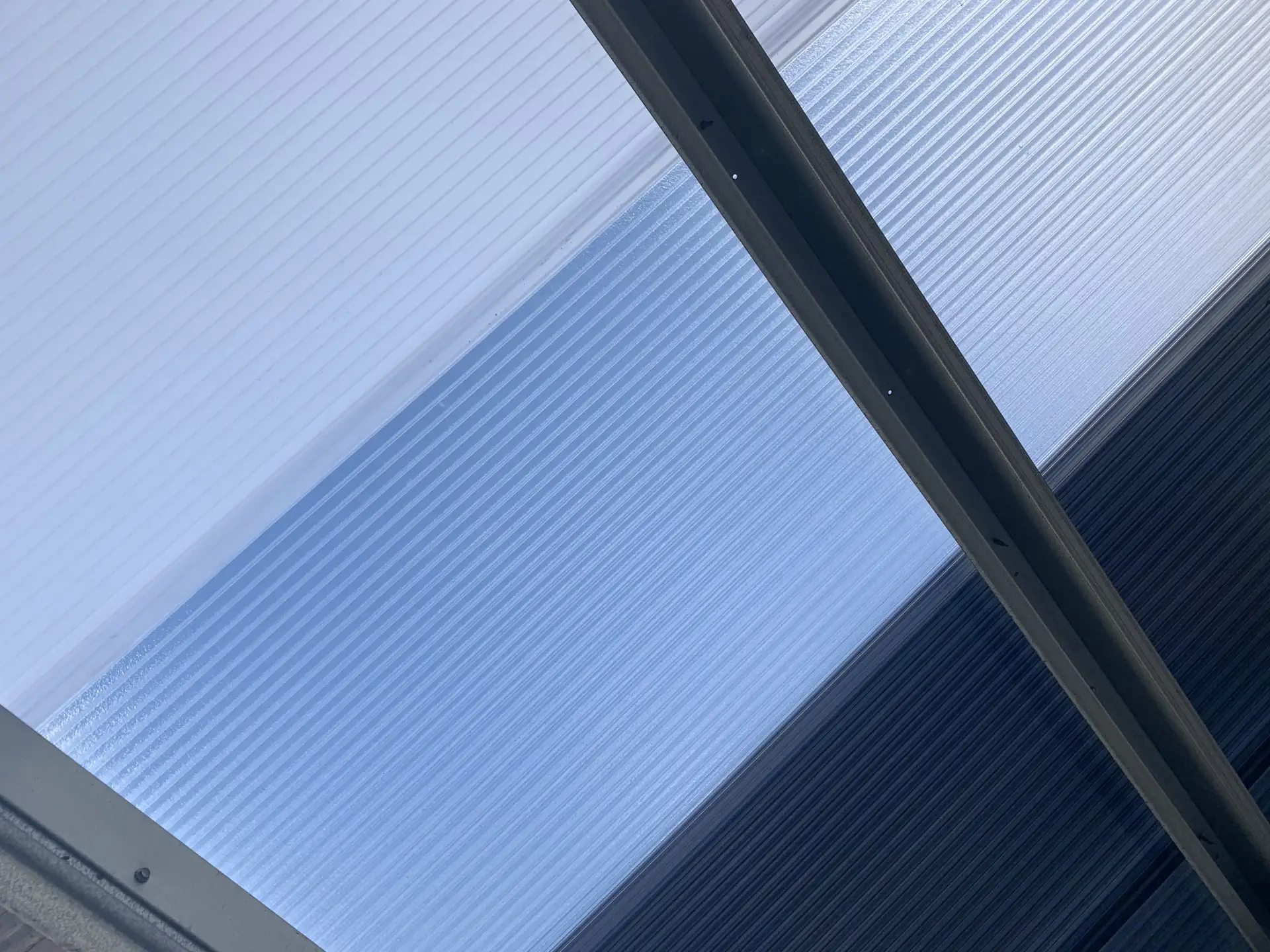

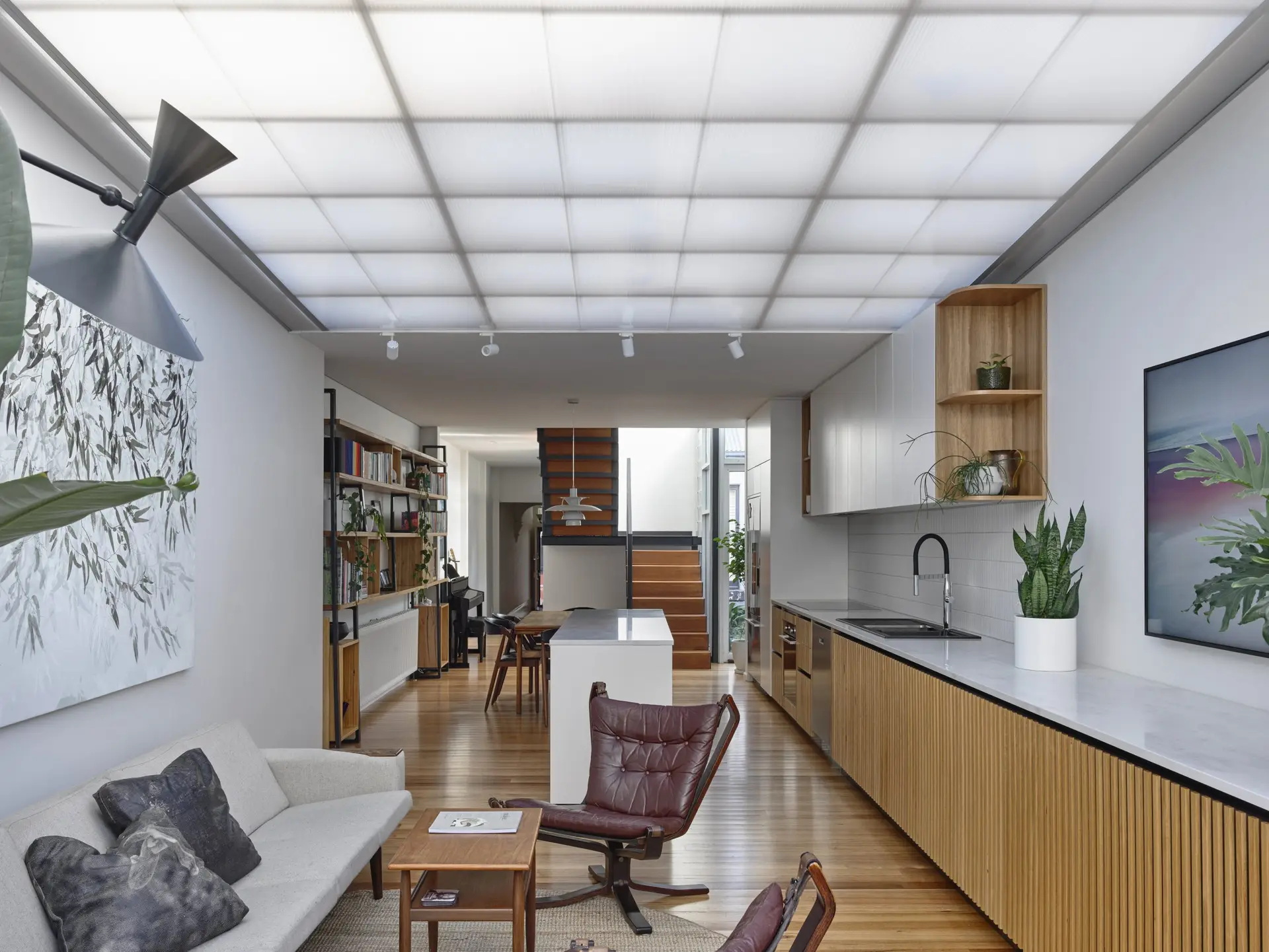

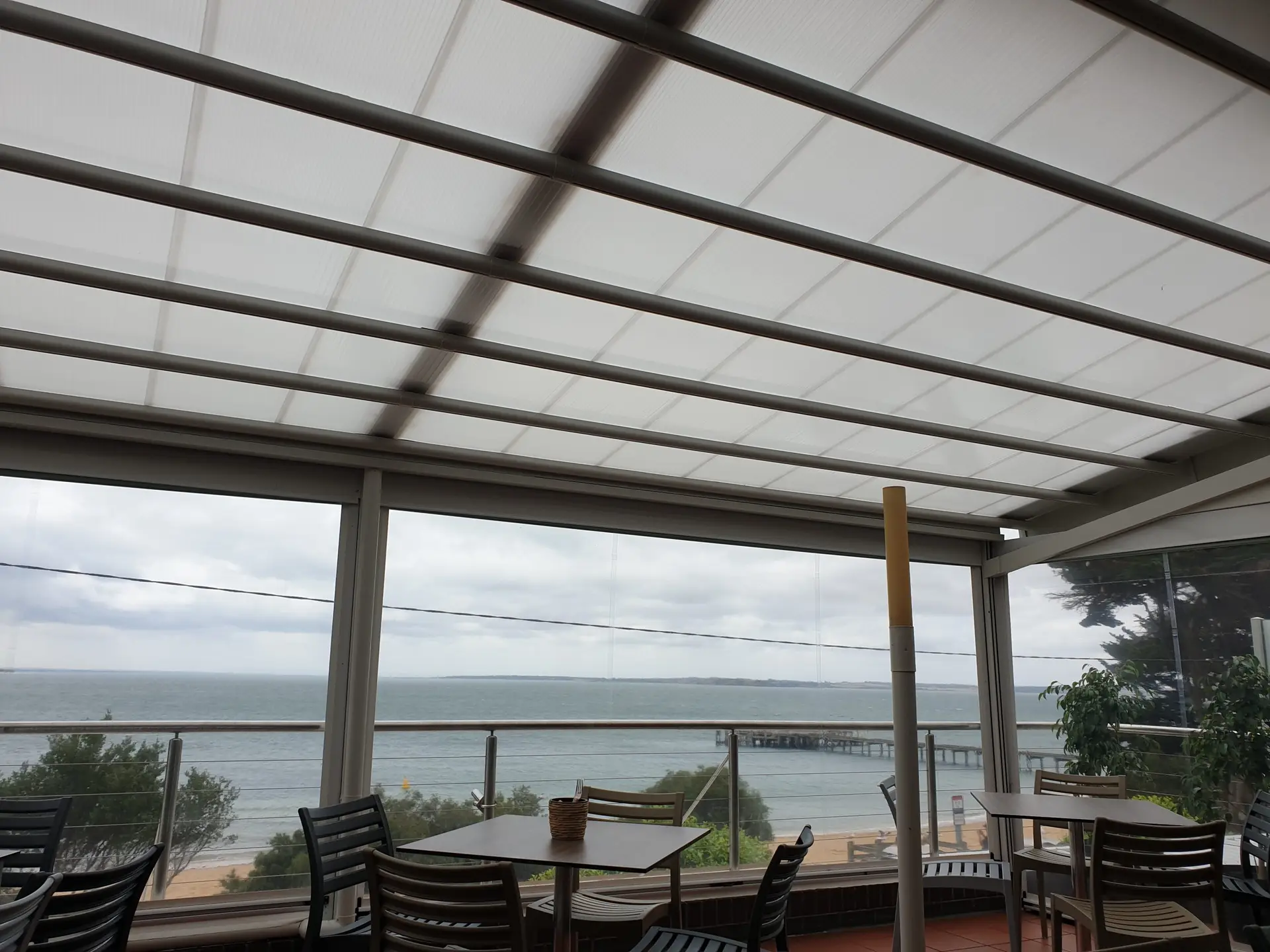

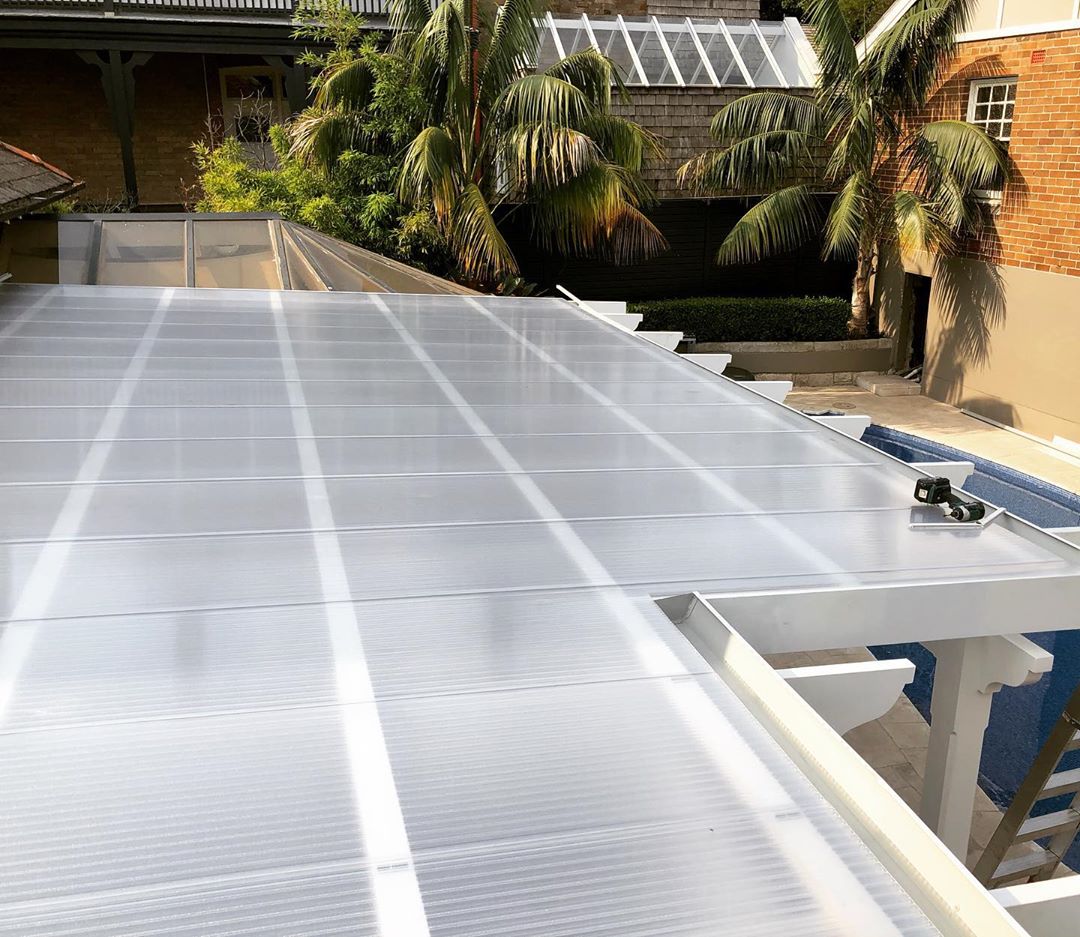

Real installations show the range from compact walkways to bright residential interiors and outdoor entertaining zones.
Specifications

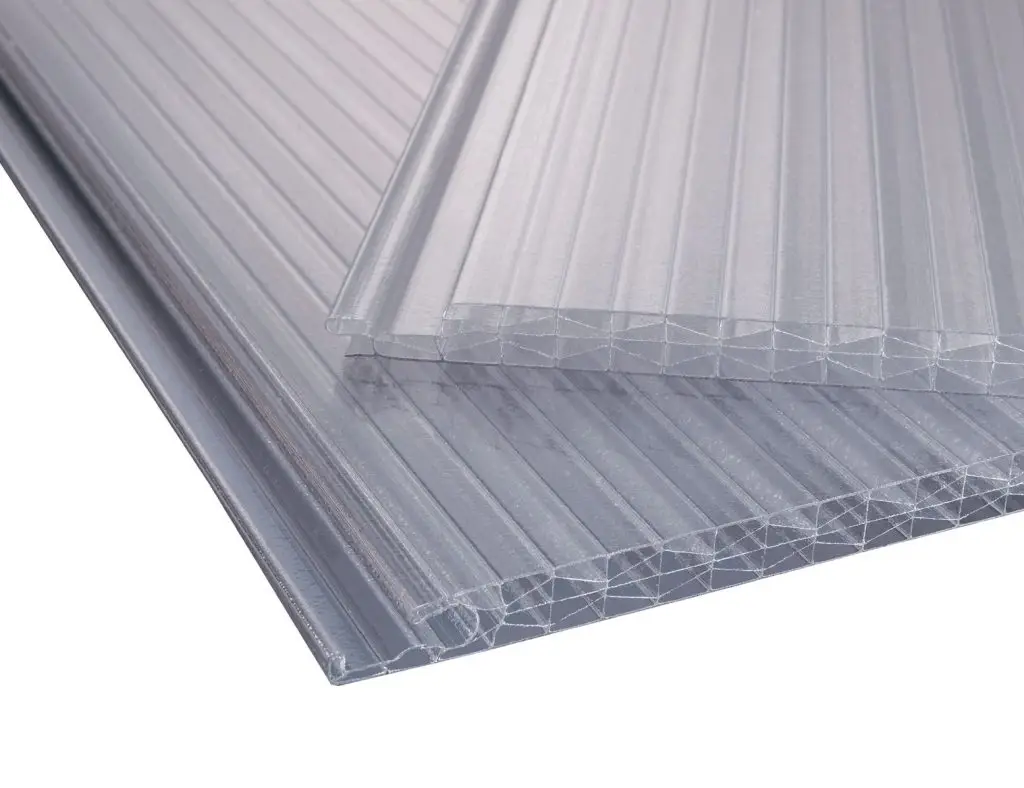

EasyClick PC™ is a 500mm wide, 16mm thick multiwall sheet designed to click together for a clean concealed fixing system.
| Sheet width | 500mm cover width |
|---|---|
| Sheet thickness | 16mm multiwall cross wall construction |
| Sheet length | 2.0m, 2.5m, 3.0m, 3.5m, 4.0m, 4.5m, 5.0m, 5.5m, 6.0m and 7.0m |
| Minimum roof fall | 5 degrees |
| Maximum batten spacing | 1500mm |
| Spanning load ratings | 900mm centres: up to 3.5kPa; 1200mm centres: up to 3.0kPa; 1500mm centres: up to 2.5kPa |
| Colours | Clear, Opal, Grey and Metallic Grey |
| UV protection | One side |
| Thermal insulation | U = 2.0 W/m²K |
| End cap lengths | 3.0m and 6.0m |
| Side cap lengths | 4.0m and 7.0m |
| Recommended screws | Wafer 25mm C3 T17 for timber; Wafer 22mm C3 Tek for steel |
| Compatible sealant | Polycarbonate safe silicone |
| Applications | Patios, pergolas, carports, greenhouses, pool enclosures and partitions |
Warranty and downloads
Keep the technical details close at hand when planning, quoting or confirming the right EasyClick PC™ setup for your project.
EasyClick PC™ Brochure
Download the product brochure for profile details, installation information and product planning.
Open Brochure10 Year limited warranty
EasyClick PC™ 500 is covered against UV degradation, loss of light transmission and excessive impact damage when installed according to manufacturer guidelines.
Contact AmpeliteCalculate Your Material Requirements
Use Ampelite’s material calculator to estimate the core components required for an EasyClick PC™ roofing project.
- Number of EasyClick 500 PC panels
- Required end caps for a neat finish
- Side caps for exposed edges
- Appropriate fixing washers
- Full list with product codes for easy quoting
Watch the EasyClick PC™ video below:
See the EasyClick PC™ roofing system and installation concept in action.
